The Boss range of Buckets, Grabs, and Screening Buckets deliver outstanding innovation, performance and versatility.
Boss Attachments delivers extreme earthmoving attachments and demolition equipment to major work sites across Australasia.
Backing up the brand is our solid experience in the earthmoving industry. Our earthmoving buckets and demolition equipment were developed specifically to meet the harsh and varied conditions that contractors – and their earthmoving equipment – must deal with. That’s why Boss is the go-to attachment supplier of choice for a growing number of contractors throughout Australia, New Zealand and the Pacific.
Built tough, proven on demanding worksites, and trusted across Australasia.
High-strength wear plate and reinforced structures engineered to outlast.
Field-tested across Australasia’s most demanding earthmoving sites.
Engineered for faster cycles, efficient performance, and reliable output on demanding worksites.
Local technical specialists, parts inventory and after-sales service.
Explore Boss Attachments’ heavy-duty product range engineered for performance, durability, and demanding worksites across Australasia.
The Rail Grab has been designed by Harrybilt Engineering to pick up and manoeuver lengths of rail up to 1700kg in weight.
The grab includes 2 hydraulically operated jaws to grip and hold the rail. The hydraulic cylinders controlling these jaws are fitted with counterbalance valves to keep the rail secure even in the event of hose failure.
The Rail Grab has been designed by Harrybilt Engineering to pick up and manoeuver lengths of rail up to 1700kg in weight.
The grab includes 2 hydraulically operated jaws to grip and hold the rail. The hydraulic cylinders controlling these jaws are fitted with counterbalance valves to keep the rail secure even in the event of hose failure.

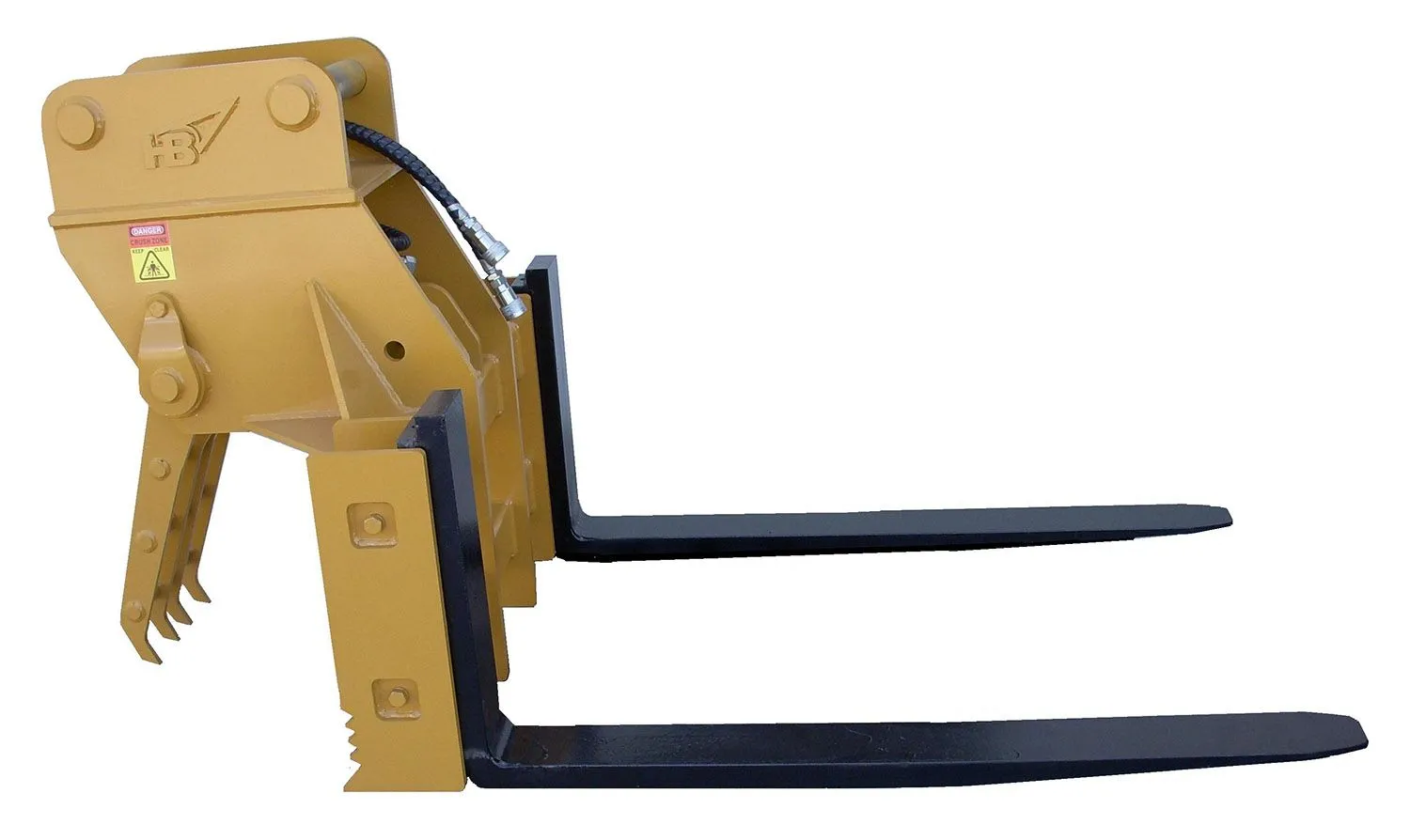

Harrybilt Engineering has customized the Fork Grab to have Adjustable Tines. This allows the attachments to be able to grab multiple sizes and weights of work tools and general rail maintenance gear.
The Adjustable Fork Grab is suitable for 8 to 17 ton excavators
Working Load Limit (Rated Capacity) 2500kg @ 0.5M • Weights 420kg • Adjustable Tynes • Suitable for 8 to 17 ton excavators
This product is a lightweight version of our Fork Grab, suitable for 5-8t Excavators. This attachment allows the safe and efficient handing of work tools and general rail maintenance gear.
Weighing 250kg
Working Load Limit (Rated Capacity) 2500kg at 0.5m
Manually Adjustable Tynes.
1200mm Long Tynes as Standard (1070mm available on request)
The Fork/Grab has been designed to facilitate the safe and efficient handling of packs of sleepers, but also provides the option to pick up and position single sleepers as required.
The Fork/Grab attachment is particularly suitable for use on 8 to 16 ton excavators.
Note: It is recommended that the fork/ Grab attachment be used with a maximum 16-17 ton excavator fitted with over-centre lockout valves on all boom cylinders and coupled to a rotating head attachment.
Weight (Tare): 360kg
Working Load Limit (RatedCapacity) 2500kg @ 0.5m
Height: 850mm
Width: 1030mm
Length: 1900mm
Tyne Length: 1200mm
Developed by Harrybilt Engineering, this piece of equipment has been specifically designed to provide an efficient method of handling rail. First designed in 2007 to meet a niche market, it has proved itself as a reliable performer and has contributed to the laying and maintenance of many hundreds of kilometres of rail track.
The grab will grip under the head of the rail for lift. The hardened point allows the threader to slide under rail, even through ballast and the vertical and horizontal rollers provide low resistance support so the threader can slide along the rail providing lift of the rail on or off the sleeper.
This reduces manual handling and the O H & S issues related to moving heavy rail.
It is recommended that the Rail Threader be used with a Rotating head fitted to the excavator.
mDesigned to fit over the head of the rail, and is a means of dragging or pulling lengths of rail.
Rail Block includes 1 x 12 ton Bow Shackle
Maximum Working Load Limit (WLL): 12 tonne
This Rail Maintenance Attachment has been designed to withstand the harshest working conditions. While the original Rail Threader is reliable and efficient, there was demand for the attachment to last longer and have a higher lifting capacity for larger excavators.
This new development has made this the perfect Rail Maintenance Attachment for laying and maintaining many hundreds of kilometres of rail track, while also being a longer lasting product in the tough Australian conditions.
Any original Rail Threader can be upgraded to be Heavy Duty.
A general purpose grab which can be used for moving or side insertion of steel, wood or concrete sleepers.
Includes rubber pads which can be removed if necessary to suit individual user requirements/applications.
Weight: 350kg
This attachment is designed to be used with a Tilt Rotating Head to maximise its versatility over a wide range of operations in areas such as Environmental Waste Management, Civil Works, Building Industry and Landscaping & Grounds Management.
It is designed to be as light as possible to make it attractive as an attachment for excavators, backhoes etc in order that their lifting capacity is not overly reduced, while at the same time being as strong as possible to provide trouble free operation throughout its working life.
The use of this attachment will reduce the need for manual handling inputs thus minimising the OH&S risks to persons engaged in the many operations this machine may undertake.
To suit 5 ton excavator
Tare: 145kg
WLL: 150kg
Max clamp dia.: 700mm
Min clamp dia.: 100mm
Max working pressure: 3000psi
Max flow rate: 11 litres/min at 100psi
POLE CALIPER
The pole caliper is designed to provide accurate diameter measurements on poles up to 600mm.
This is specifically valuable in the maintenance program for timber power poles.
Harrybilt Engineering will manufacture rail trailers to specific customer requirements, we also manufacture a standard range of trailers including flat and sleeper deck, 3m and 4m in length.
Options:
The Octopus – 4 Concrete Sleeper Handler can be used with a minimum 12 ton excavator.
Weight (Tare): 1200kg
Height: 1.0 metre
Width: 3.0 metres
Length: 2.4 metres
Maximum Hydraulic Working Pressure
Clamping Cylinders: Max: 2500psi
Max: 2500psi
Working Load Limit: 1600kg (4 x 400kg concrete sleepers)
Note: Not to exceed the WLL of the excavator/boom the Octopus
is fitted to.
Weight (Gross): 2800kg
Note: Maximum Drop Centres for this Octopus are 700mm.
The Rail Dog is a rolling rail anchor designed for railway bridge maintenance and elevated rail work. Available in two sizes to suit both standard and smaller rail profiles. Mounted directly to the rail head, the Rail Dog provides a mobile fall-arrest anchor that travels along the rail as the user moves, allowing continuous protection while working along the track.
The Rail Dog is designed for rail bridge maintenance and elevated track work where workers require continuous fall protection while moving along the rail.
Mounted directly onto the rail head, the Rail Dog travels along the rail with the worker while maintaining a secure connection to a fall-arrest harness.
Key uses
Rail bridge maintenance
Elevated rail inspections
Rail infrastructure repairs
Rail corridor maintenance
Designed to clamp directly over the head of the rail, and is a means of lifting lengths of rail.
Rail Scissors include
2 x 4.7ton Bow shackles & 1 x 12 ton Bow Shackle + Ring
Maximum Working Load Limit (WLL): 4.75 tonne
This product is a lightweight version of our Fork Grab, suitable for 5-8t Excavators. This attachment allows the safe and efficient handing of work tools and general rail maintenance gear.
Weighing 250kg
Working Load Limit (Rated Capacity) 2500kg at 0.5m
Manually Adjustable Tynes.
1200mm Long Tynes as Standard (1070mm available on request)
Able to lift and lay 6 sleepers, it suits the mid range size of excavators above 16 ton. It is recommended that this attachment be used with a Tilt Rotating Head (or equivalent) for maximum efficiency and manoeuvrability
The ‘Octopus’ Concrete Sleeper Handler range has been designed to simplify and speed up the safe laying of concrete sleepers for rail and tram networks.
First designed in 2003 to meet a niche market it has proved itself as a reliable performer and has contributed to many hundreds of kilometres of new rail track.
The Octopus can be fitted with a 70 deg slew ring though it is recommended that this attachment be used with a Tilt Rotating Head for maximum efficiency and manoeuvrability.
Weight (Tare): 1500kg
Height
Folded for transport 1.0 Metre
Unfolded for use 1.4 Metres
Width: 3.0 Metres
Length:
Folded for transport: 2.0 Metres
Extended for use: 4.2 Metres
Working Load Limit: 2400kg (6 x 400kg concrete sleepers)
Rail Cleaning
The unit cleans the rail head of rust and grime on old rail allowing for efficient metal to metal contact and improves rail detection.
The addition of the clip pusher in this model allows for clips on the sleeper to be fixed to the inside of the rail.
A fast and efficient method saves manual handling, time and money.
Weight (Tare): 440kg
Height: 1.1 Metres
Width (Standard Blade): 0.63 Metres
Length (Standard Blade) 1.2 Metres
Working Load Limit: 400kg (1 x 400kg Concrete Sleeper)
Note: Not to exceed the WLL of the excavator / boom the Platypus is fitted to.
The Large Platypus with 2750 wide blade, with Bullant Multi Purpose Grab, has been designed by Harrybilt Engineering for sleeper replacement work.
It features:
The removal of ballast in one pass around both rails.
Adjustable digging depth rollers.
Includes bolt-on Cutting Edge.
Optional grab height stop is available.
Required clamping pressure, max. 2600psi/180bar – min 1000psi/70bar
Weight: 980kg
WLL: 400kg
This grab has been designed to pick up points bearers up to 6 meters in length.
Tare: 370kg
WLL: 1800kg
A time saver for any rail maintenance team, the Centipede – Undercutter / Ballast Remover removes spoil fast and without fuss.
Hi-torque radial piston Poclain motor
Replaceable double sided BIS80 wear plates
Bolt on hitch options
Low profile hitch position
Replaceable bump pad to avoid sleeper damage
Super heavy duty chain:
A time saver for any rail maintenance team, the Centipede – Undercutter / Ballast Remover removes spoil fast and without fuss.
Hi-torque radial piston Poclain motor
Replaceable double sided BIS80 wear plates
Bolt on hitch options
Low profile hitch position
Replaceable bump pad to avoid sleeper damage
Super heavy duty chain:
A time saver for any rail maintenance team, the Centipede – Undercutter / Ballast Remover removes spoil fast and without fuss.
Hi-torque radial piston Poclain motor
Replaceable double sided BIS80 wear plates
Bolt on hitch options
Low profile hitch position
Replaceable bump pad to avoid sleeper damage
Super heavy duty chain:
The Ballast Sweeper has been designed by Harrybilt Engineering to remove excess ballast from the rail line and sleeper clips.
The No.3 unit (large 4 leg) is particularly suitable for use on 14-18 ton excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
The No. 2 unit (medium 4 leg) is particularly suitable for use on backhoes and 10-14 tonne excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
Weight (Tare): 470 kg
Height: 1.2 Metres
Width: 0.6 Metres
Length: 0.7 Metres
The light weight Tamper No. 2 is suitable for 5-10 ton excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
Weight (tare): 380 Kg
Height: 1.42m
Width: 0.6m
Length: 0.7m
Twin Tamper models are available to suit machines from a backhoe to large excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
Weight (tare): 1,260 Kg
Height: 1.45m
Width: 0.85m
Length: 2.30m
Harrybilt Engineering’s 4in1 Bucket is designed for loading and unloading material such as ballast and shaping the formation shoulders.
This attachment can be built to have a heavy duty bolt on edge to last longer in harsh working conditions.
Harrybilt Engineering’s 4in1 Bucket is designed for loading and unloading material such as ballast and shaping the formation shoulders.
This attachment can be built to have a heavy duty bolt on edge to last longer in harsh working conditions.
The Rake / Blade attachment has a twin position hitch so that the operator is able to pick up the attachment for raking or cleaning up with the blade edge.
Harrybilt Engineering’s Cribbing Bucket is ideal for railway maintenance.
It allows operators to efficiently clean under rails. The attachment comes in varying sizes to suit 8t and above excavators and 14t and above excavators. This bucket range also includes a taller bucket for 14t and above excavators for a deeper digging depth.
8 Cribbing Bucket Weighs 150kg is suited for 8t and above excavators.
14 Cribbing Bucket Weighs 210 kgs is suited for 14t and above excavators.
14 Long Cribbing Bucket Weighs 260 Kg is suited for 14t and above excavators.
This longer bucket is designed for specialty digging depth.
200mm wide
Long lip design
Strong and Durable design
Harrybilt Engineering’s Cribbing Bucket is ideal for railway maintenance.
It allows operators to efficiently clean under rails. The attachment comes in varying sizes to suit 8t and above excavators and 14t and above excavators. This bucket range also includes a taller bucket for 14t and above excavators for a deeper digging depth.
8 Cribbing Bucket Weighs 150kg is suited for 8t and above excavators.
14 Cribbing Bucket Weighs 210 kgs is suited for 14t and above excavators.
14 Long Cribbing Bucket Weighs 260 Kg is suited for 14t and above excavators.
This longer bucket is designed for specialty digging depth.
200mm wide
Long lip design
Strong and Durable design
Harrybilt Engineering has developed a Triple Gauge and Dual Gauge Rail System designed specifically for the Wacker Neuson DV90 base machine.
The Friction Drive System converts wheeled dumpers for rail applications, enabling seamless operation on both road and rail networks.
Retractable rail wheel assemblies installed on the dumper positioning the vehicle on the rail, allowing the rear tyres continue to provide traction and braking, whilst providing train stop clearance. The rear end has a mechanical twist mechanism to suit the rail regulator’s requirements. All four rail wheels are fitted with park brakes to prevent “runaways”, as well as service brakes to make the unit more agile & productive.
All controls will be operated from the driver’s cabin. All hydraulic components are matched to the dumper’s specifications for flow rate, operating pressure and temperature.
Harrybilt Engineering offers a turnkey solution for all Track Excavators, this includes the supply of the excavator, the installation of the Hi Rail System and supporting registration for required networks around Australia so the machine is Rail Ready when it leaves the workshop. The team can also handle the purchase and installation of a Tiltrotator along with Harrybilt Engineering’s own wide range of Rail Maintenance Attachments.
Harrybilt Engineering offers a turnkey solution for all Track Excavators, this includes the supply of the excavator, the installation of the Hi Rail System and supporting registration for required networks around Australia so the machine is Rail Ready when it leaves the workshop. The team can also handle the purchase and installation of a Tiltrotator along with Harrybilt Engineering’s own wide range of Rail Maintenance Attachments.
The Rail wheels can be set to either Narrow, Standard or Broad Gauge and are propelled by hydraulic motors installed within the rail system. Excavators are rigorously commissioned and tested so every Hi Rail Machine is Rail Ready when it leaves the workshop.
Talk to the Boss team for expert advice on the best brand and attachment solution for your equipment and project needs.
Boss tooling is specified across the full spectrum of heavy industry — wherever uptime, output and operator safety define the bottom line.
