HARRYBILT ENGINEERING BALLAST SWEEPER
The Ballast Sweeper has been designed by Harrybilt Engineering to remove excess ballast from the rail line and sleeper clips.
- Motors: 76 lt/min, 310 bar = 191RPM
Material Handling
THE RANGE

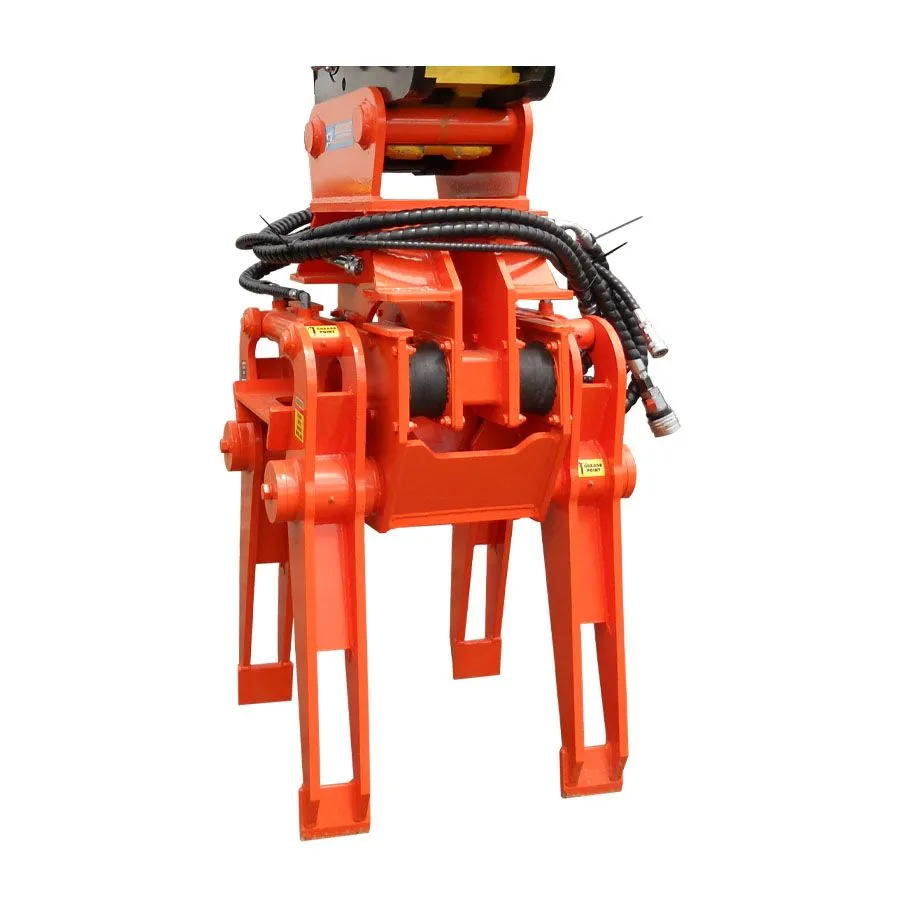

HARRYBILT ENGINEERING Tamper No. 3
The No.3 unit (large 4 leg) is particularly suitable for use on 14-18 ton excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
- Weight (Tare): 750kg
- Height: 1.45 Metres
- Width: 0.85 Metres
- Length: 0.9 Metres

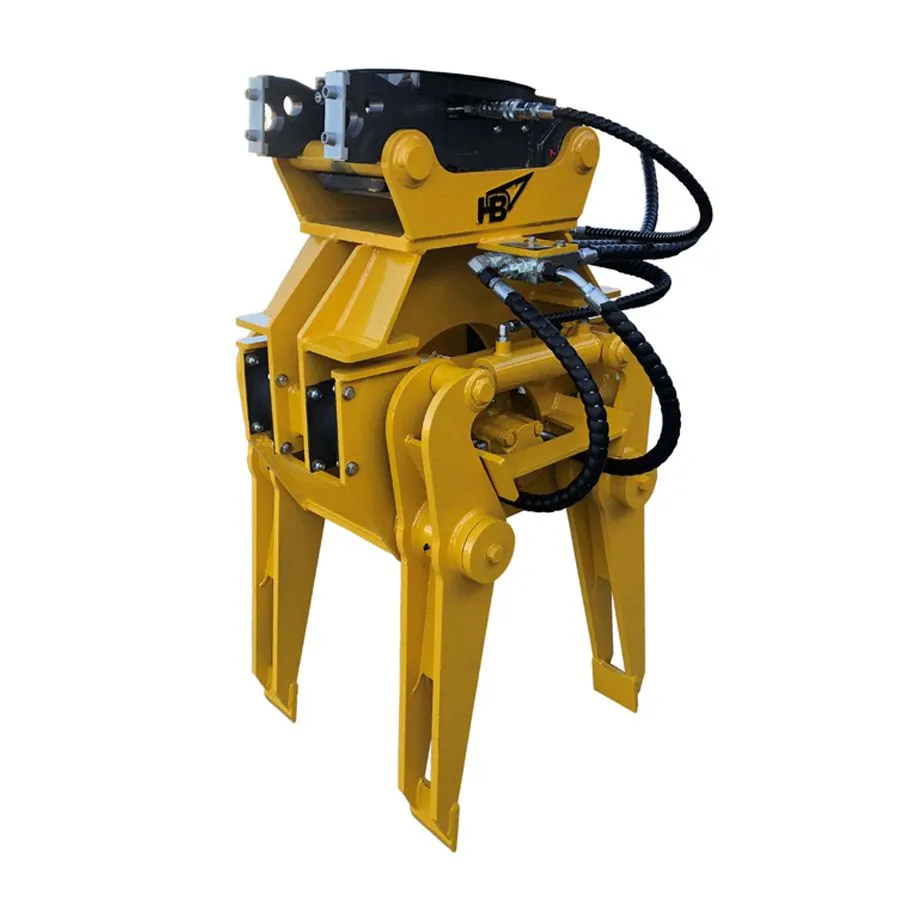

HARRYBILT ENGINEERING Tamper No. 2
The No. 2 unit (medium 4 leg) is particularly suitable for use on backhoes and 10-14 tonne excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
Weight (Tare): 470 kg
Height: 1.2 Metres
Width: 0.6 Metres
Length: 0.7 Metres

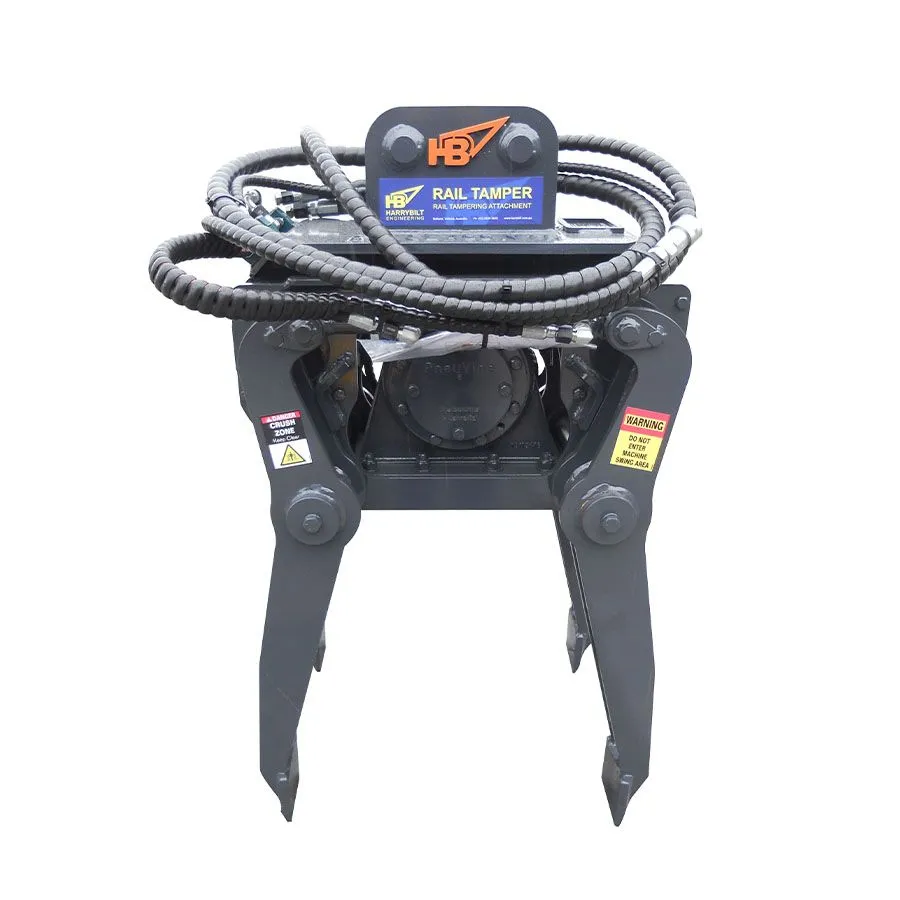

HARRYBILT ENGINEERING Tamper No2 Light Weight
The light weight Tamper No. 2 is suitable for 5-10 ton excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
Weight (tare): 380 Kg
Height: 1.42m
Width: 0.6m
Length: 0.7m

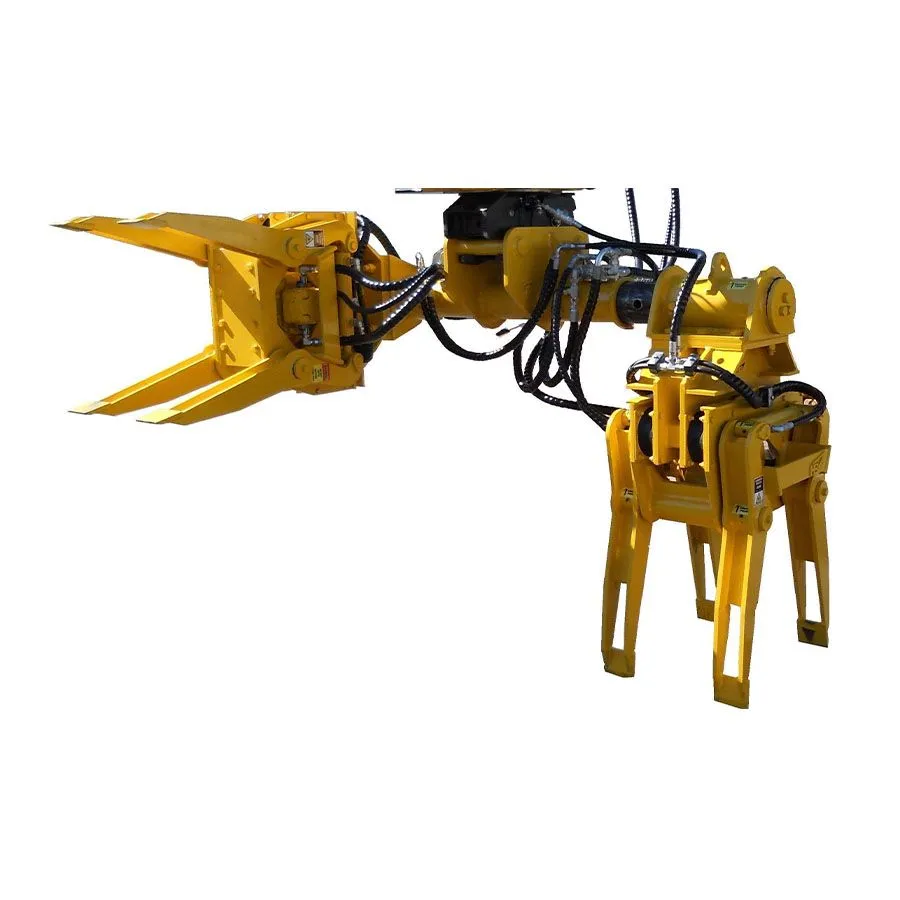

HARRYBILT ENGINEERING Tamper Number 2 Twin
Twin Tamper models are available to suit machines from a backhoe to large excavators.
The ‘Tamping Head’ Ballast Compaction Unit has been designed by Harrybilt Engineering to efficiently compact ballast following replacement of railway sleepers on the rail networks of Australia.
Weight (tare): 1,260 Kg
Height: 1.45m
Width: 0.85m
Length: 2.30m

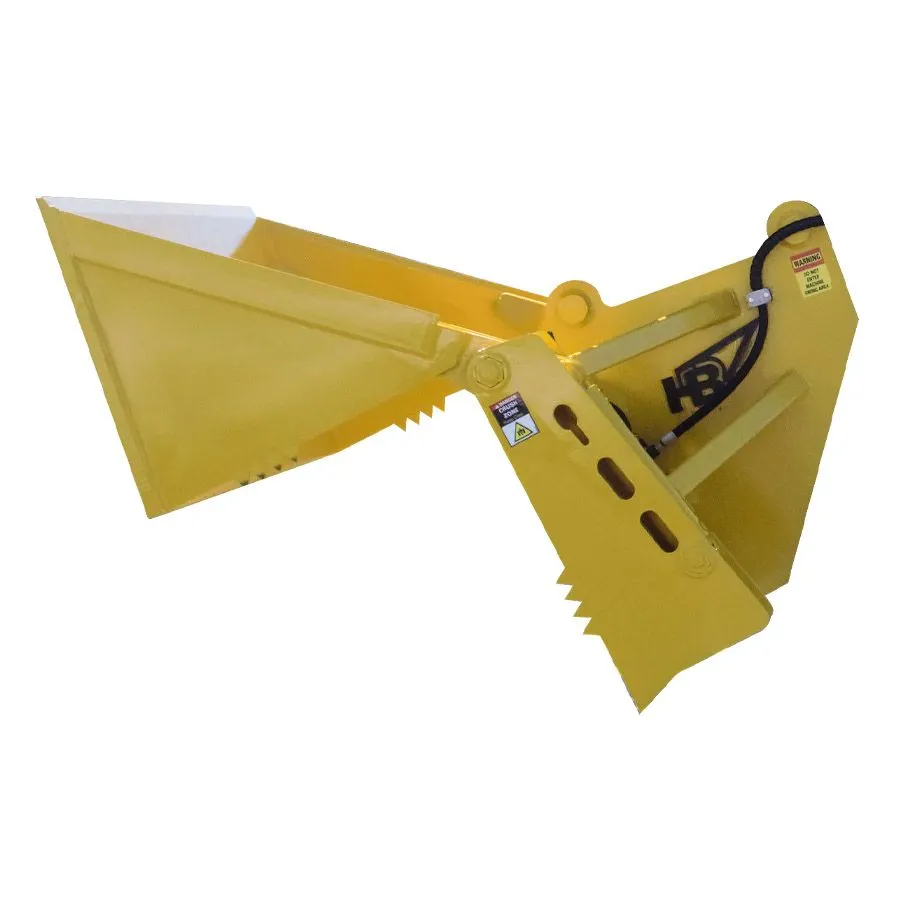

HARRYBILT ENGINEERING 4 IN 1 BUCKET 1700MM
Harrybilt Engineering’s 4in1 Bucket is designed for loading and unloading material such as ballast and shaping the formation shoulders.
This attachment can be built to have a heavy duty bolt on edge to last longer in harsh working conditions.
HARRYBILT ENGINEERING 4 IN 1 BUCKET 1800MM HEAVY DUTY
Harrybilt Engineering’s 4in1 Bucket is designed for loading and unloading material such as ballast and shaping the formation shoulders.
This attachment can be built to have a heavy duty bolt on edge to last longer in harsh working conditions.

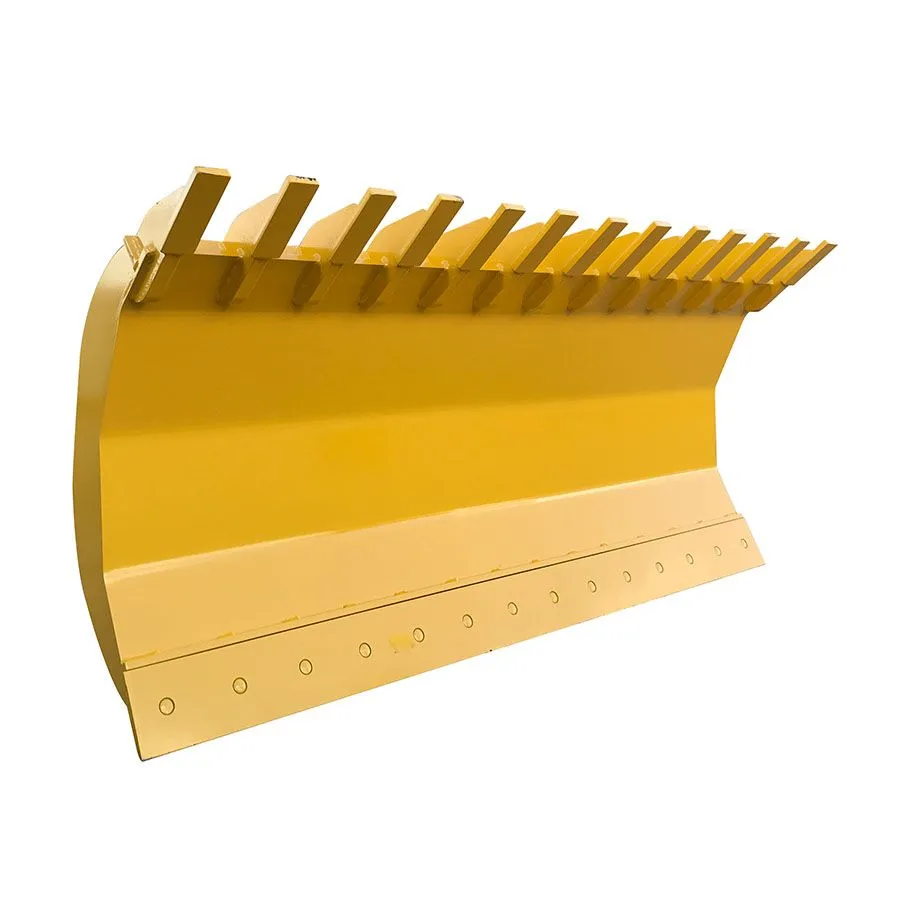

HARRYBILT ENGINEERING RAKE/BLADE
The Rake / Blade attachment has a twin position hitch so that the operator is able to pick up the attachment for raking or cleaning up with the blade edge.
HARRYBILT ENGINEERING BALLAST CRIBBING BUCKET 14
Harrybilt Engineering’s Cribbing Bucket is ideal for railway maintenance.
It allows operators to efficiently clean under rails. The attachment comes in varying sizes to suit 8t and above excavators and 14t and above excavators. This bucket range also includes a taller bucket for 14t and above excavators for a deeper digging depth.
8 Cribbing Bucket Weighs 150kg is suited for 8t and above excavators.
14 Cribbing Bucket Weighs 210 kgs is suited for 14t and above excavators.
14 Long Cribbing Bucket Weighs 260 Kg is suited for 14t and above excavators.
This longer bucket is designed for specialty digging depth.
200mm wide
Long lip design
Strong and Durable design
HARRYBILT ENGINEERING BALLAST CRIBBING BUCKET 8
Harrybilt Engineering’s Cribbing Bucket is ideal for railway maintenance.
It allows operators to efficiently clean under rails. The attachment comes in varying sizes to suit 8t and above excavators and 14t and above excavators. This bucket range also includes a taller bucket for 14t and above excavators for a deeper digging depth.
8 Cribbing Bucket Weighs 150kg is suited for 8t and above excavators.
14 Cribbing Bucket Weighs 210 kgs is suited for 14t and above excavators.
14 Long Cribbing Bucket Weighs 260 Kg is suited for 14t and above excavators.
This longer bucket is designed for specialty digging depth.
200mm wide
Long lip design
Strong and Durable design
