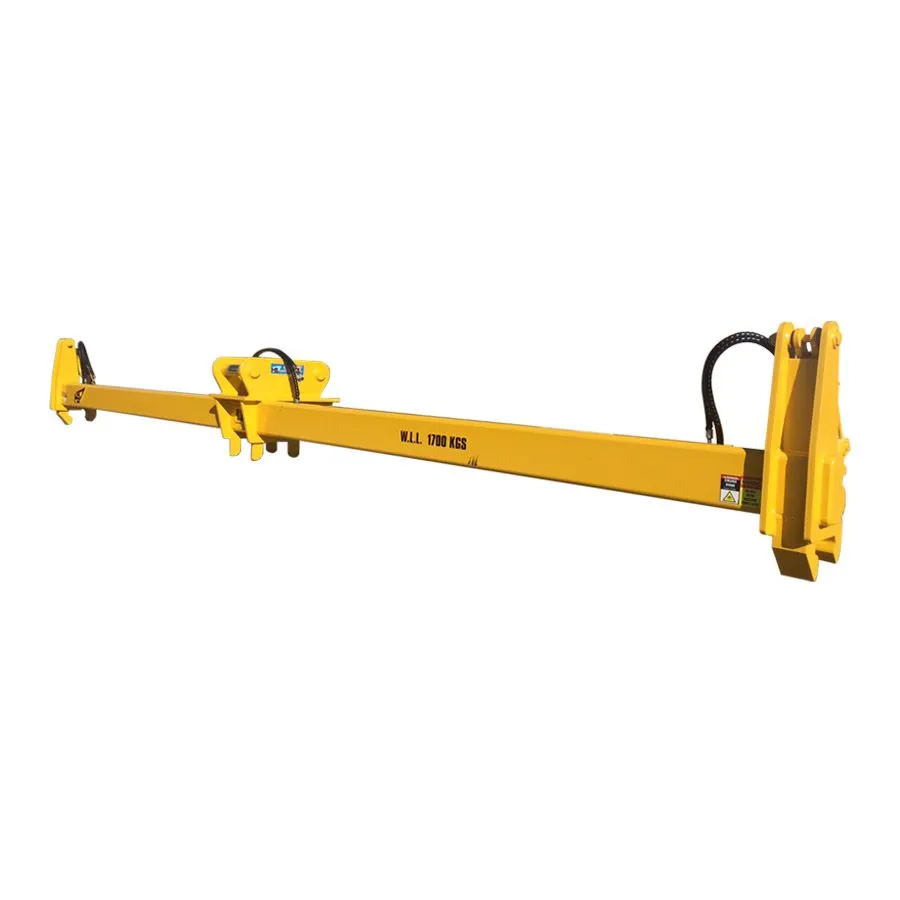

The Rail Grab has been designed by Harrybilt Engineering to pick up and manoeuver lengths of rail up to 1700kg in weight.
The grab includes 2 hydraulically operated jaws to grip and hold the rail. The hydraulic cylinders controlling these jaws are fitted with counterbalance valves to keep the rail secure even in the event of hose failure.
The Rail Grab has been designed by Harrybilt Engineering to pick up and manoeuver lengths of rail up to 1700kg in weight.
The grab includes 2 hydraulically operated jaws to grip and hold the rail. The hydraulic cylinders controlling these jaws are fitted with counterbalance valves to keep the rail secure even in the event of hose failure.
Developed by Harrybilt Engineering, this piece of equipment has been specifically designed to provide an efficient method of handling rail. First designed in 2007 to meet a niche market, it has proved itself as a reliable performer and has contributed to the laying and maintenance of many hundreds of kilometres of rail track.

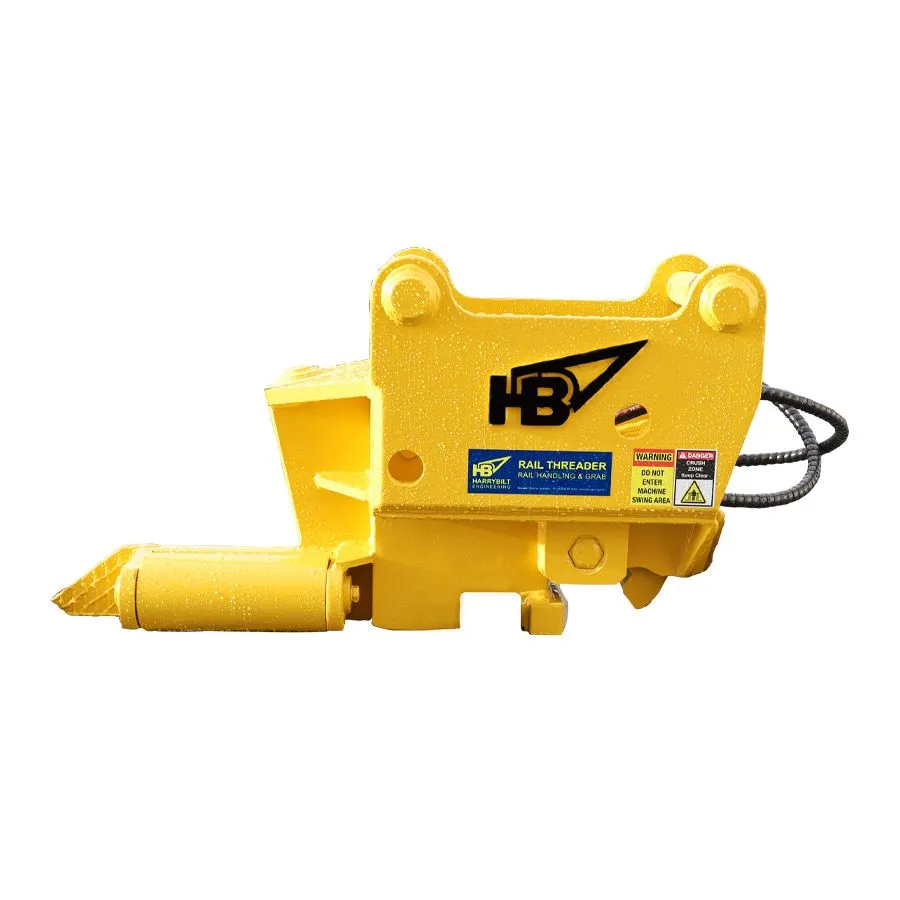

The grab will grip under the head of the rail for lift. The hardened point allows the threader to slide under rail, even through ballast and the vertical and horizontal rollers provide low resistance support so the threader can slide along the rail providing lift of the rail on or off the sleeper.
This reduces manual handling and the O H & S issues related to moving heavy rail.
It is recommended that the Rail Threader be used with a Rotating head fitted to the excavator.

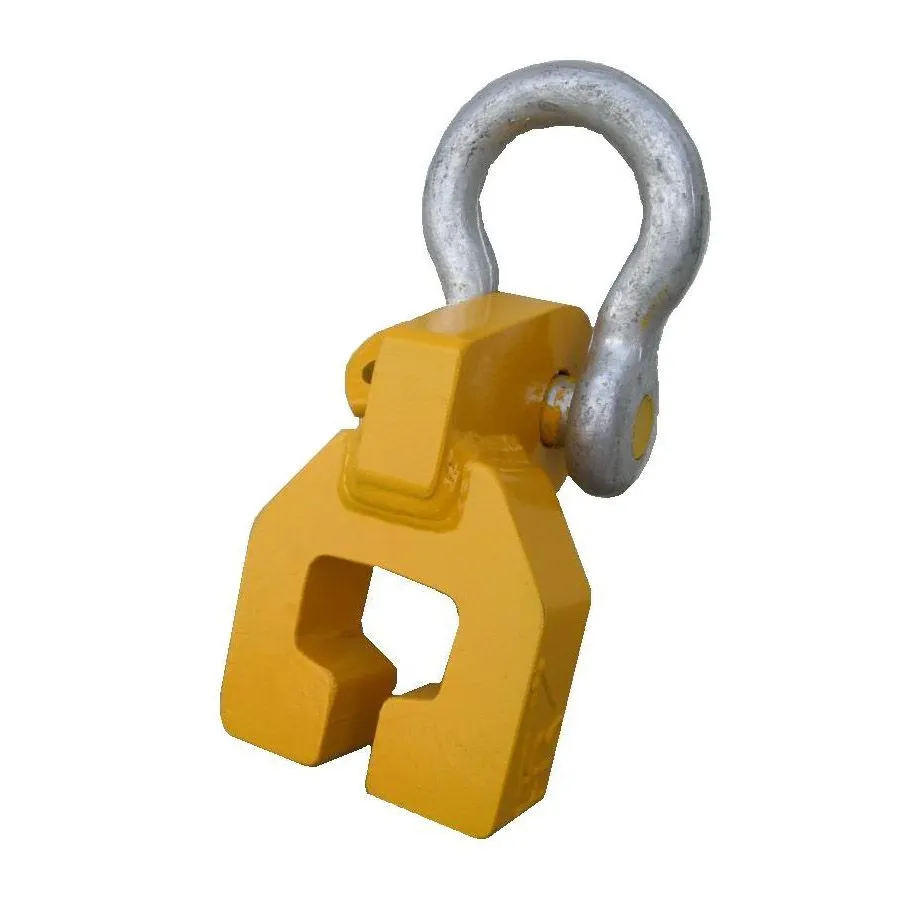

mDesigned to fit over the head of the rail, and is a means of dragging or pulling lengths of rail.
Rail Block includes 1 x 12 ton Bow Shackle
Maximum Working Load Limit (WLL): 12 tonne

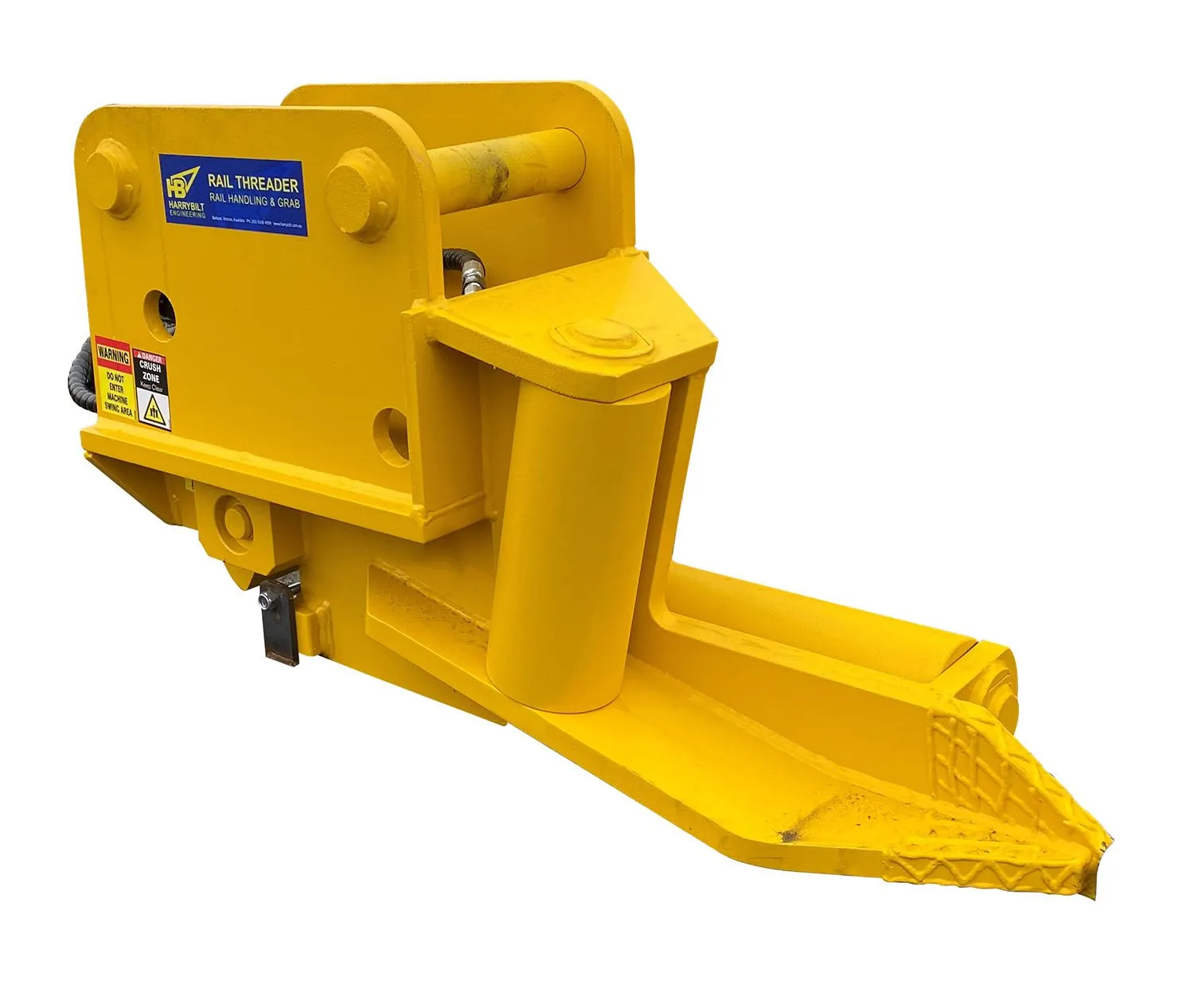

This Rail Maintenance Attachment has been designed to withstand the harshest working conditions. While the original Rail Threader is reliable and efficient, there was demand for the attachment to last longer and have a higher lifting capacity for larger excavators.
This new development has made this the perfect Rail Maintenance Attachment for laying and maintaining many hundreds of kilometres of rail track, while also being a longer lasting product in the tough Australian conditions.
Any original Rail Threader can be upgraded to be Heavy Duty.
A general purpose grab which can be used for moving or side insertion of steel, wood or concrete sleepers.
Includes rubber pads which can be removed if necessary to suit individual user requirements/applications.
Weight: 350kg
This attachment is designed to be used with a Tilt Rotating Head to maximise its versatility over a wide range of operations in areas such as Environmental Waste Management, Civil Works, Building Industry and Landscaping & Grounds Management.
It is designed to be as light as possible to make it attractive as an attachment for excavators, backhoes etc in order that their lifting capacity is not overly reduced, while at the same time being as strong as possible to provide trouble free operation throughout its working life.
The use of this attachment will reduce the need for manual handling inputs thus minimising the OH&S risks to persons engaged in the many operations this machine may undertake.

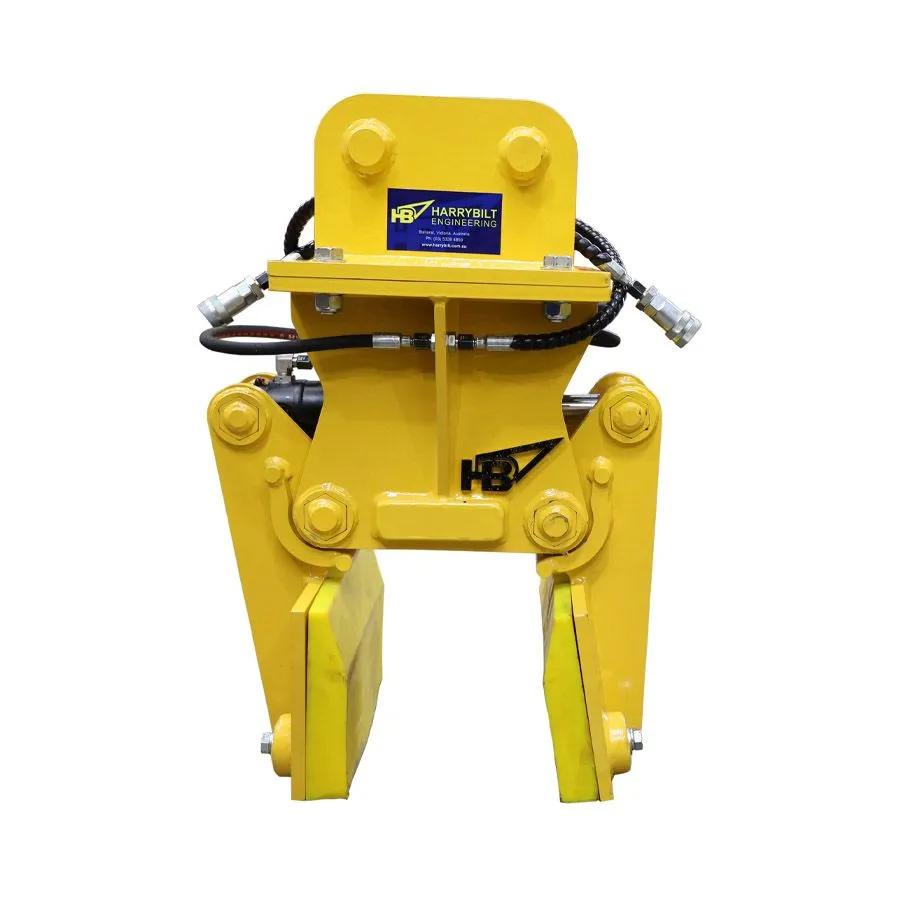

To suit 5 ton excavator
Tare: 145kg
WLL: 150kg
Max clamp dia.: 700mm
Min clamp dia.: 100mm
Max working pressure: 3000psi
Max flow rate: 11 litres/min at 100psi

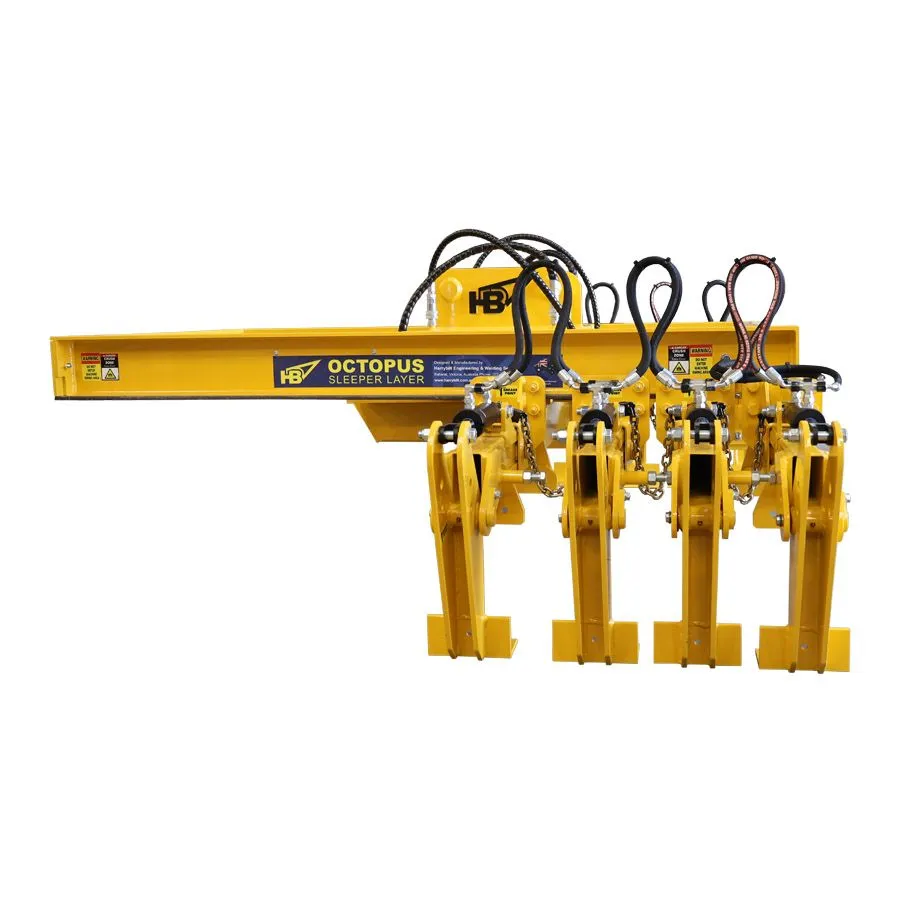

The Octopus – 4 Concrete Sleeper Handler can be used with a minimum 12 ton excavator.
Weight (Tare): 1200kg
Height: 1.0 metre
Width: 3.0 metres
Length: 2.4 metres
Maximum Hydraulic Working Pressure
Clamping Cylinders: Max: 2500psi
Max: 2500psi
Working Load Limit: 1600kg (4 x 400kg concrete sleepers)
Note: Not to exceed the WLL of the excavator/boom the Octopus
is fitted to.
Weight (Gross): 2800kg
Note: Maximum Drop Centres for this Octopus are 700mm.
This product is a lightweight version of our Fork Grab, suitable for 5-8t Excavators. This attachment allows the safe and efficient handing of work tools and general rail maintenance gear.
Weighing 250kg
Working Load Limit (Rated Capacity) 2500kg at 0.5m
Manually Adjustable Tynes.
1200mm Long Tynes as Standard (1070mm available on request)

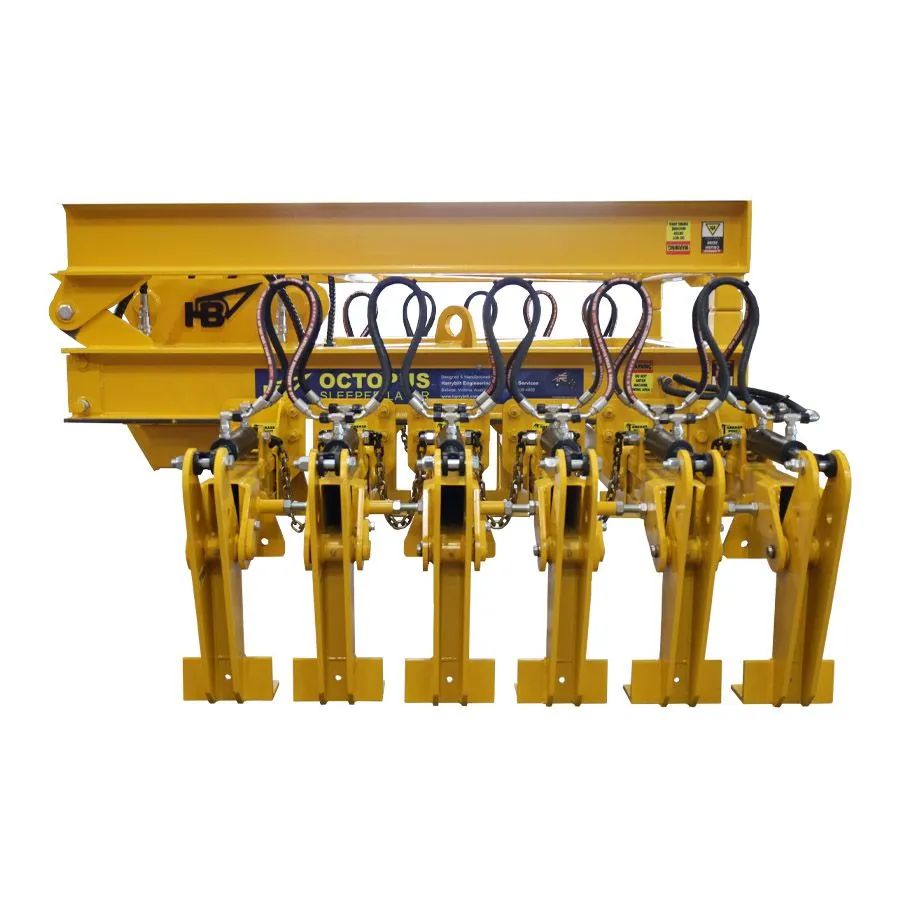

Able to lift and lay 6 sleepers, it suits the mid range size of excavators above 16 ton. It is recommended that this attachment be used with a Tilt Rotating Head (or equivalent) for maximum efficiency and manoeuvrability
The ‘Octopus’ Concrete Sleeper Handler range has been designed to simplify and speed up the safe laying of concrete sleepers for rail and tram networks.
First designed in 2003 to meet a niche market it has proved itself as a reliable performer and has contributed to many hundreds of kilometres of new rail track.
The Octopus can be fitted with a 70 deg slew ring though it is recommended that this attachment be used with a Tilt Rotating Head for maximum efficiency and manoeuvrability.
Weight (Tare): 1500kg
Height
Folded for transport 1.0 Metre
Unfolded for use 1.4 Metres
Width: 3.0 Metres
Length:
Folded for transport: 2.0 Metres
Extended for use: 4.2 Metres
Working Load Limit: 2400kg (6 x 400kg concrete sleepers)

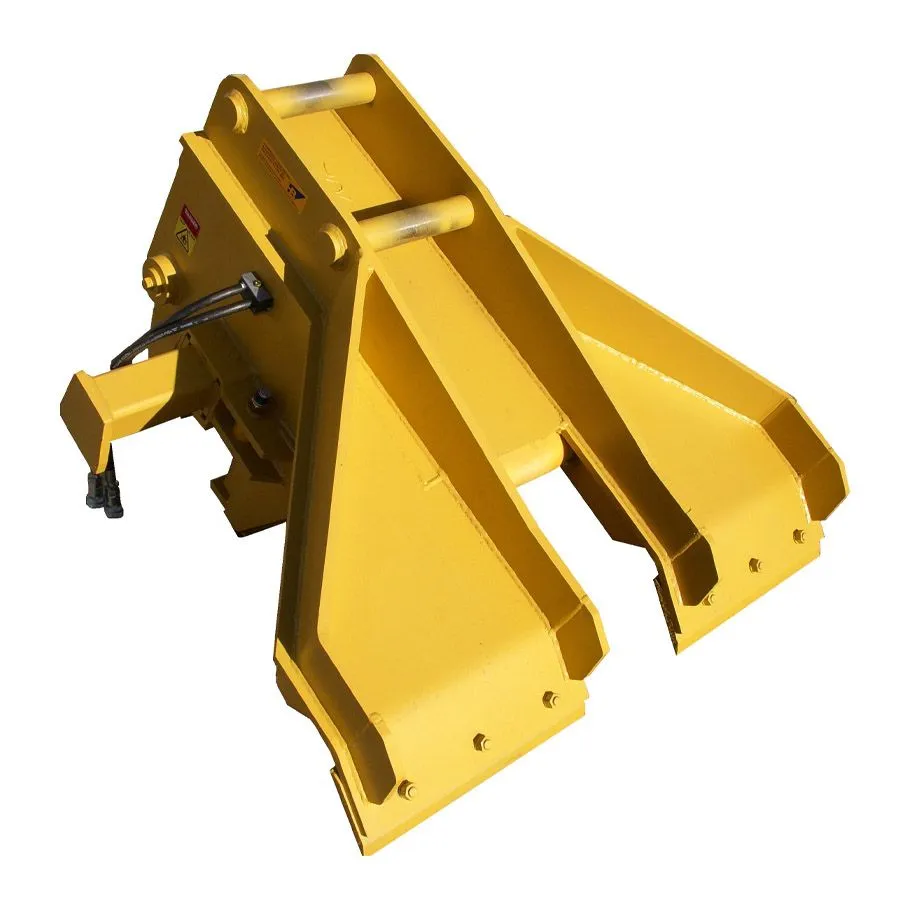

The addition of the clip pusher in this model allows for clips on the sleeper to be fixed to the inside of the rail.
A fast and efficient method saves manual handling, time and money.

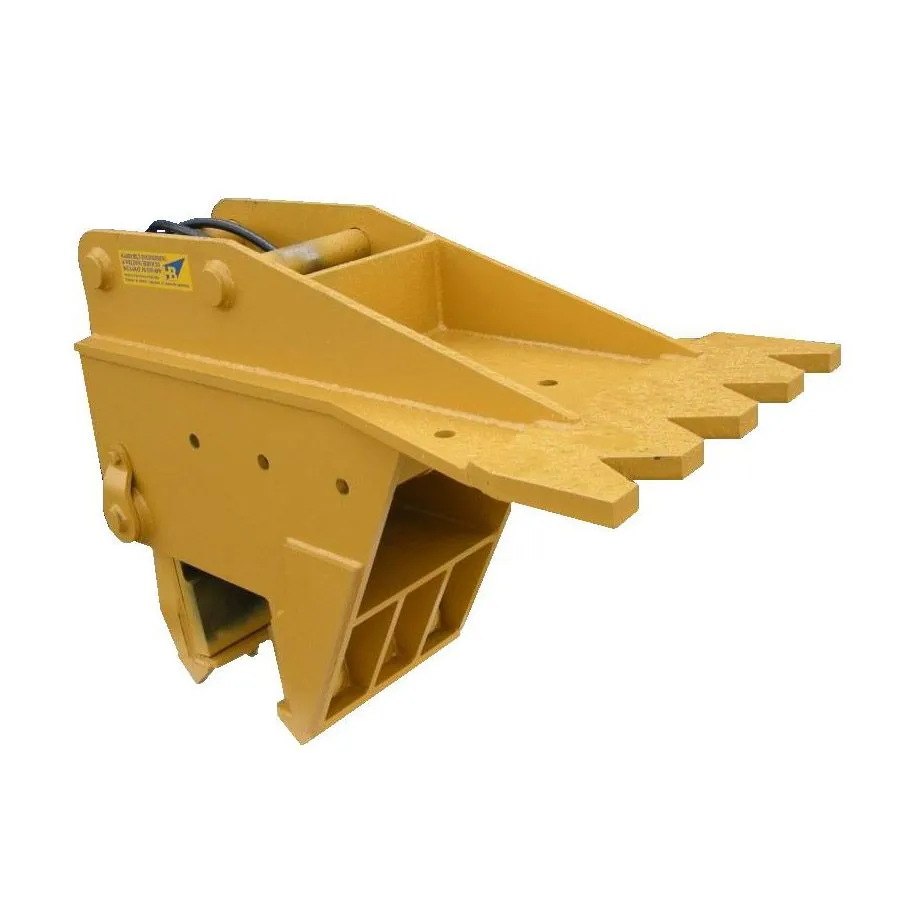

Weight (Tare): 440kg
Height: 1.1 Metres
Width (Standard Blade): 0.63 Metres
Length (Standard Blade) 1.2 Metres
Working Load Limit: 400kg (1 x 400kg Concrete Sleeper)
Note: Not to exceed the WLL of the excavator / boom the Platypus is fitted to.
The Large Platypus with 2750 wide blade, with Bullant Multi Purpose Grab, has been designed by Harrybilt Engineering for sleeper replacement work.
It features:
The removal of ballast in one pass around both rails.
Adjustable digging depth rollers.
Includes bolt-on Cutting Edge.
Optional grab height stop is available.
Required clamping pressure, max. 2600psi/180bar – min 1000psi/70bar
Weight: 980kg
WLL: 400kg

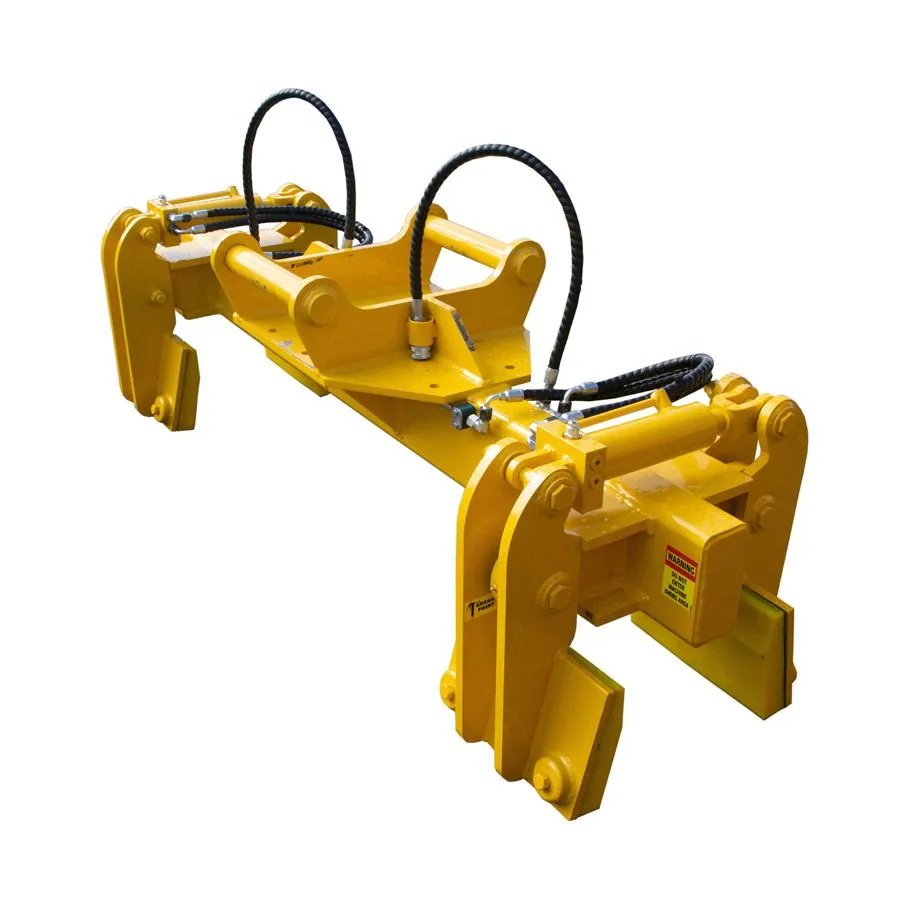

This grab has been designed to pick up points bearers up to 6 meters in length.
Tare: 370kg
WLL: 1800kg
