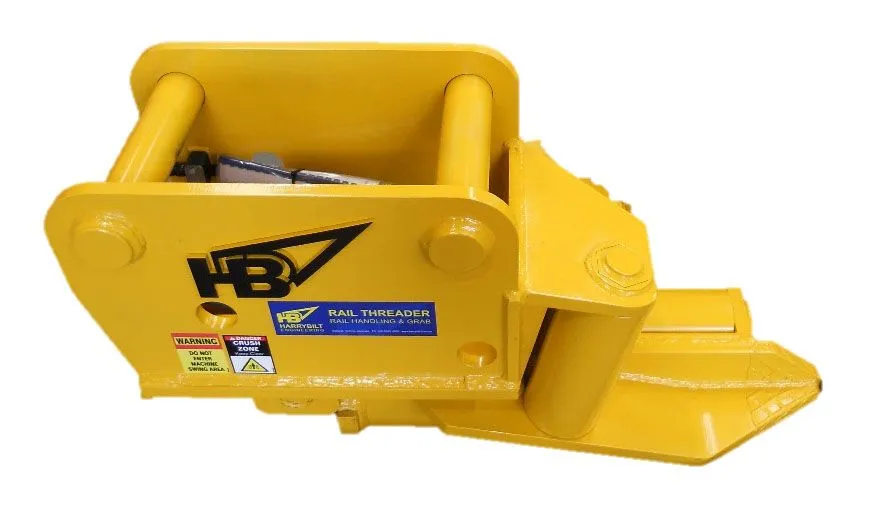

HARRYBILT ENGINEERING RAIL THREADER HEAVY

/

Product Overview

This Rail Maintenance Attachment has been designed to withstand the harshest working conditions. While the original Rail Threader is reliable and efficient, there was demand for the attachment to last longer and have a higher lifting capacity for larger excavators.
This new development has made this the perfect Rail Maintenance Attachment for laying and maintaining many hundreds of kilometres of rail track, while also being a longer lasting product in the tough Australian conditions.

Any original Rail Threader can be upgraded to be Heavy Duty.

Key Features

Little or no micro cracking of the ground outside the excavation line. (Cracking from hammers has been shown to reach up to 2m, depending on rock type). This can cause issues with existing infrastructure.
Minimised overbreak of trench line.

Minimal disturbance of trench face making for a safer more intact trench.
Lower noise impact than other methods.
Lower vibration impact.

Ability to reuse the material onsite as hardfill, thus reducing waste and increasing site efficiency.
Extremely reliable tools and Antraquip also have a range of Soft Soil mixing attachments which have used in NZ for Mud-Crete.

Specifications

	RAIL THREADER HEAVY
Attachment Weight (KG)	360KG
Oil flow (LPM)	N/A
Oil Pressure (PSI)	2600PSI
Excavator Class (Tons)	14t

Industry

Rail

Tunneling

Type

Grab

Machine

Excavator
