Key Features
The patented TongVise™ easily makes and breaks joints with guaranteed precision.

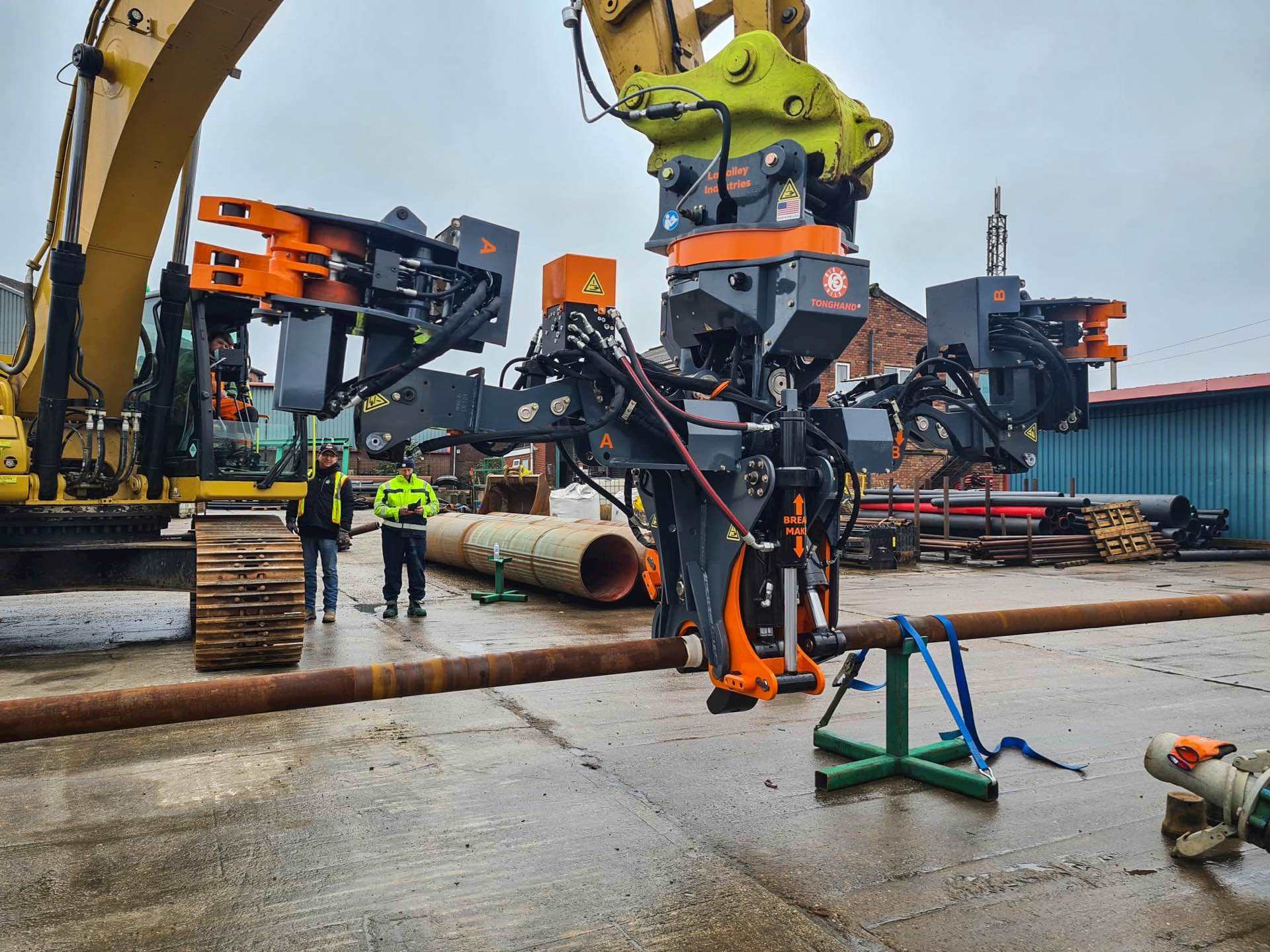

TONGHAND® eliminates the use of back-breaking wrenches and removes personnel from working in danger zones.
TONGHAND® mounts to any brand of excavator—the excavator’s auxiliary hydraulics safely and efficiently power the TONGHAND® system.
Specifications
| Units | TONGHAND | TONGHAND S | TONGHAND XS | |
| Excavator Wt Class | TON | 30-36 METRIC TON | 18-23 METRIC TON | 14-18 METRIC TON |
| Supply Pressure | PSI / BAR | 5000 PSI / 345 BAR | 5000 PSI / 345 BAR | 3000 PSI / 207 BAR |
| Max Flow | GPM / LPM | 35 GPM / 132 LPM | 30 GPM / 114 LPM | 30 GPM / 114 LPM |
| Min Flow | GPM / LPM | 25 GPM / 76 LPM | 20 GPM / 76 LPM | 20 GPM / 76 LPM |
| Standard Recommended Flow | GPM / LPM | 30 GPM / 114 LPM | 25 GPM / 91 LPM | 25 GPM / 95 LPM |
| Main Beam Size | – | – | – | – |
| Capacity | LB/KG | 16,000 LB / 7,258 KG | 5,000 LB / 2,268 KG | 5,000 LBS / 2,268 KGS |
| Weight | LB/KG | 8350 LB / 3788 KG | 5496 LB / 2493 KG | 4672 LBS / 2119 KGS |
| Dimensions | INCHES | 100L x 46W x 97H (IN) / 254L x 117W x 246H (CM) | 96W x 60D x 85H (IN) / 244W x 152D x 216H (CM) | 90L x 39W x 73H (IN) / 229L x 99W x 185H (CM) |
