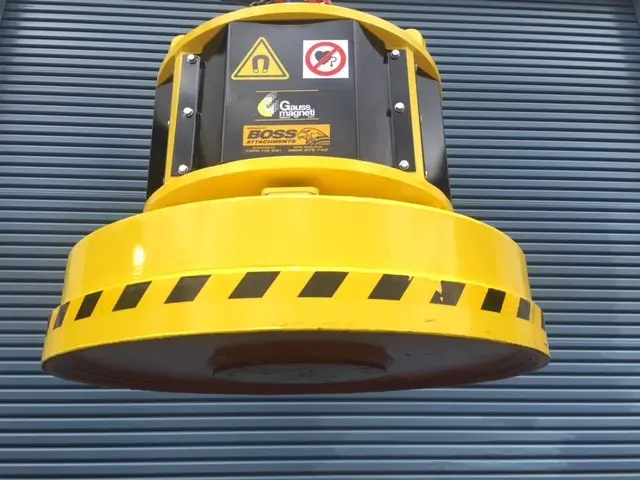

Gauss Magneti Hydraulic Circular Electromagnetic Lifter

/

Product Overview

Discover unparalleled efficiency in steel and iron handling with our Hydraulic Magnet – the ultimate all-in-one solution engineered for heavy-duty tasks.

Gauss Magneti Electro permanent magnets are particularly suitable for the handling of long flat products and remain magnetised even if there is no mains voltage or in the event of a cable breakage.

Typical uses include the handling of Billets, Slabs, Single Sheets, Single Tubes, Single Rounds, Single Beams, Single Rails and Cold Rolled Coils both horizontally and vertically.

Our Hydraulic Magnet is a compact all-in-one unit for heavy duty steel and iron handling.

Key Features

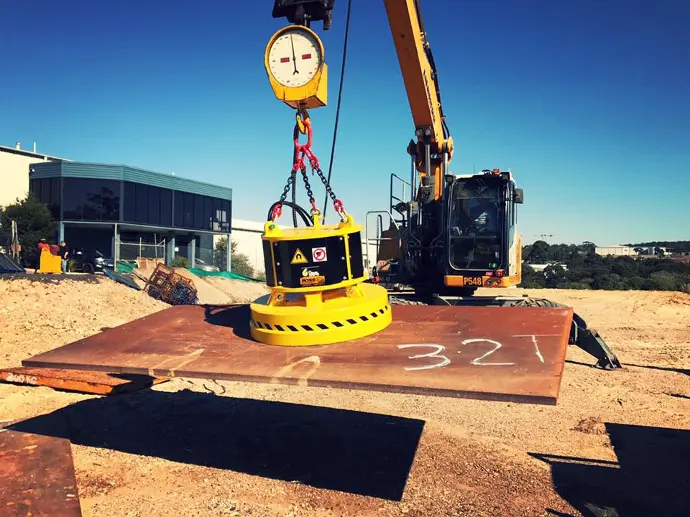

Installing the Hydraulic Magnet is straightforward—either hook it onto the excavator boom via chains or attach it using the quick connect adaptor.

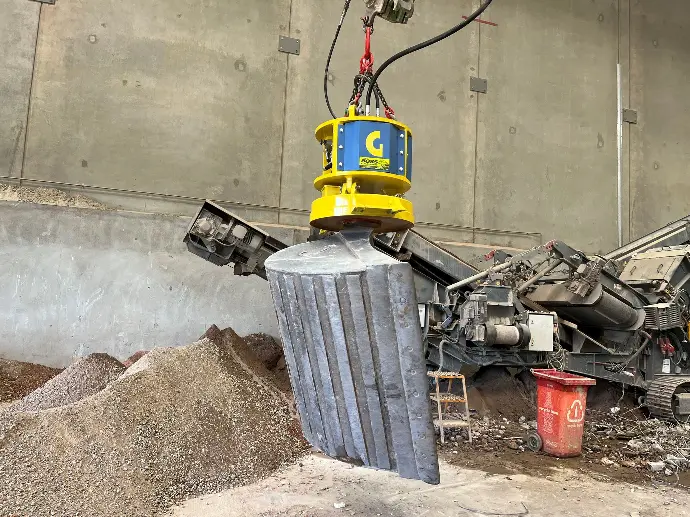

Perfect for industries like recycling, scrap management, earthmoving, and demolition, especially effective in railroad applications for scrap collection.

Operate the magnet by simply switching the machine’s oil flow on and off, without worrying about any electrical connections. This simplicity allows you to use the magnet across various machines at multiple job sites, maximising versatility and productivity.

Specifications

	Units		EC70HD	EC90HD	MRS90HD	MRS100HD	MRS110HD	MRS125HD
Absorbed power at 20°C	celsius		3	4	4.9	5.5	7	9
Nominal voltage	Vdc		220	220	220	220	220	220
Weight	Kg		265	450	680	780	890	1100
Total weight	KG		430	750	955	1085	1200	1420
Sizes	mm	Ø	720	900	960	1060	1140	1250
	mm	h	215	225	215	215	215	235
	mm	h1	740	865	855	855	855	875
Tear-off force at hot (1) with air gap	Ø/300	Slabs or blocks	5500	7900	10500	11500	13000	15000
Lift cap when hot	KG	Slabs or blocks	2700	3900	5250	5750	6500	7500
	KG	Drop ball	950	1380	2300	2600	3000	3500
Average Cap When Hot	KG	Cast iron pigs	105	160	230	280	320	490
Scrap	KG	3A 2.2–2.5 T/m	80	160	200	255	290	440
	KG	2 1.9–2 T/m	70	130	190	240	280	410
	KG	4 0.8–1 T/m	40	70	100	120	140	210

Industry

Type

Magnetic Lifters

Machine

Excavator
