BOSS ATTACHMENTS Grapple

Hydraulic Grapple

/

Excavator

Product Overview

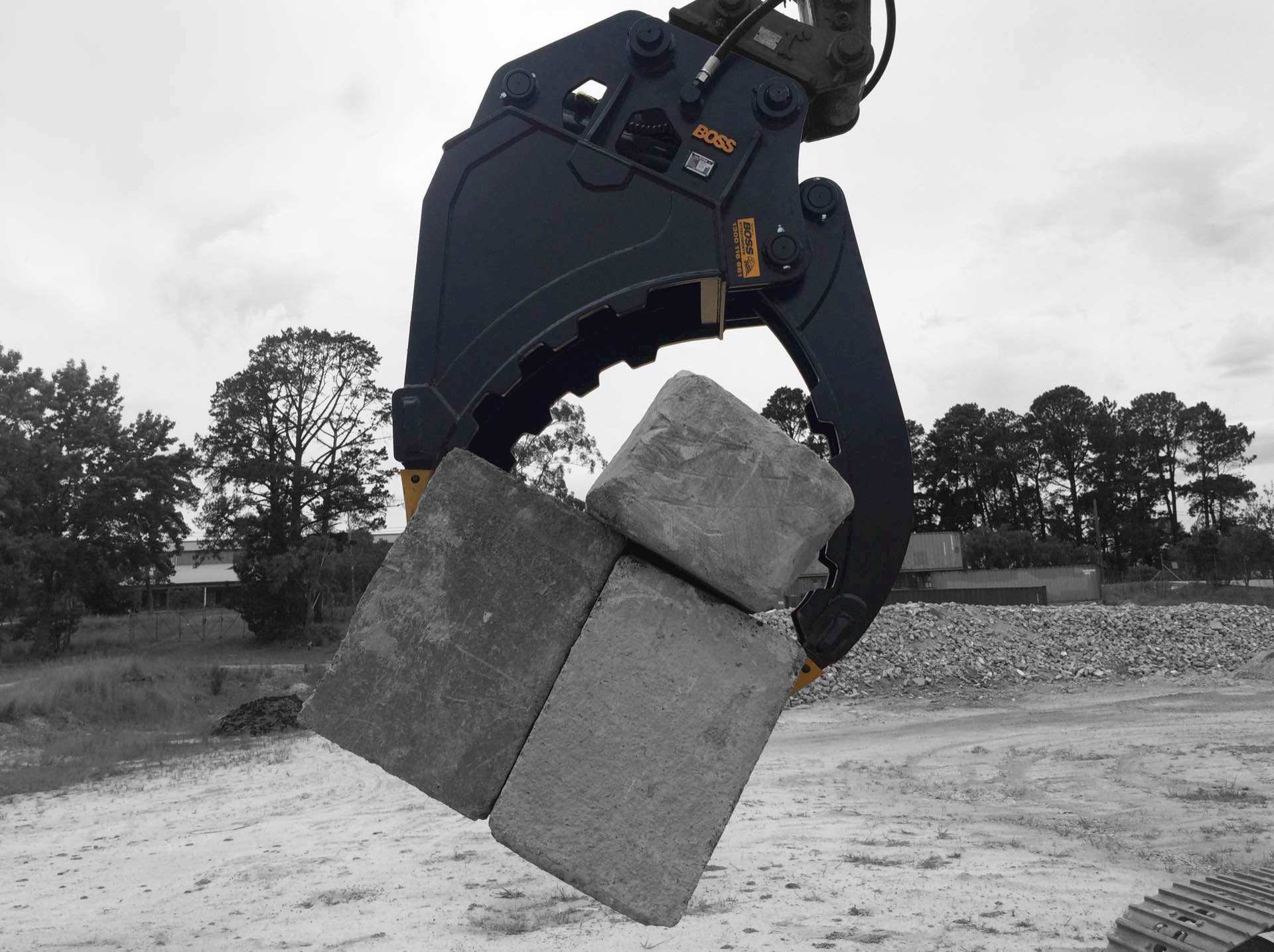

BOSS HD Hydraulic Rotating Grapples for 4-50 Tonne Excavators Built Tough By BOSS using Hardox & 400UTS High Strength Steels to withstand the harshest of conditions. The hardness & design of the structure absorbs extreme strains when it is subjected to excessive stresses.

The Boss HD Hydraulic Rotating Grapples are designed and Built for land clearing, Waste Materials Handling, Demolition & Rock Break Wall Construction applications throughout Australia, USA, Canada & Italy.

Designed & manufactured with Extreme Closing Pressures to ensure minimal load loss, and Widest Jaw Opening in its class which improves operator productivity. Fully Plumbed Australian Made Cylinders for peace of mind. Hardened Pins & Bushes to ensure longevity of the product.

Boss HD Hydraulic Rotating Grapples are manufactured with thicknesses, reinforcements and components suitable to increase its sturdiness and durability.

Key Features

DEMOLITION

  • Pull or push down concrete structure
  • Pick and place large objects
  • Crush demolition waste down
  • Dig footings and pick and place in the one movement

FORESTRY

  • Ideally suited to forestry applications
  • Use the bucket to dig out push over the trees, then carry it away.

ROCK WALL CONSTRUCTION

  • Use the bucket to prepare the bed before laying Rocks
  • Then pickup all shapes of rock and precisely place

Specifications

Item Carrier ton Tool Weight (Kg) Tool Height (mm) Tool Width (mm) Max Opening (mm) Min Closing (mm) Grapple Max (L/min-Bar)
BHBG30 2–3 280 676 324 820 150 70L – 140Bar
BHBG50 4–6 350 955 460 1,300 150 70L – 140Bar
BHBG80 7–9 423 1,070 465 1,415 150 90L – 160Bar
BHBG120 12–15 735 1,295 630 1,795 250 120L – 180Bar
BHBG200 17–25 1,400 1,560 780 2,100 250 190L – 200Bar
BHBG300 26–35 2,070 1,610 780 2,265 250 220L – 220Bar
BHBG400 36–50 2,485 1,900 1005 2,500 300 250L – 230Bar
