OSA Demolition Multisystem – MC

Multisystem

/

Excavator

Product Overview

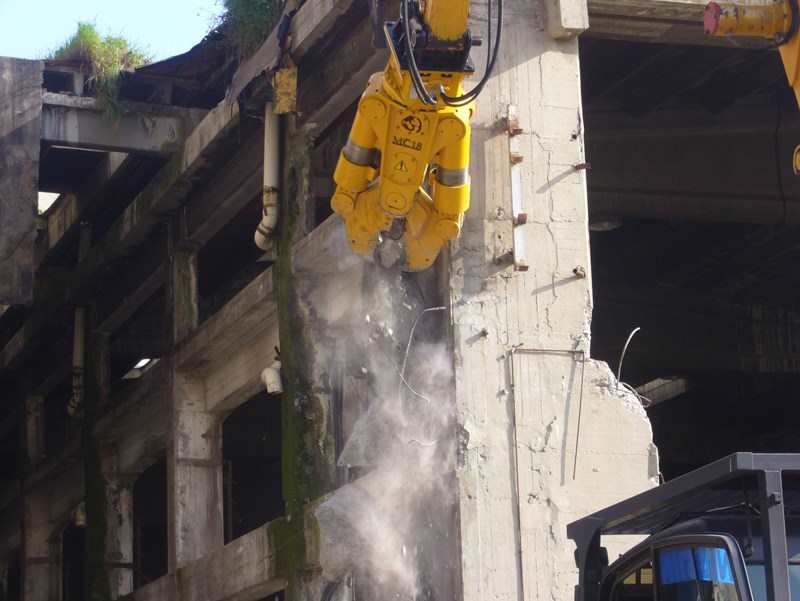

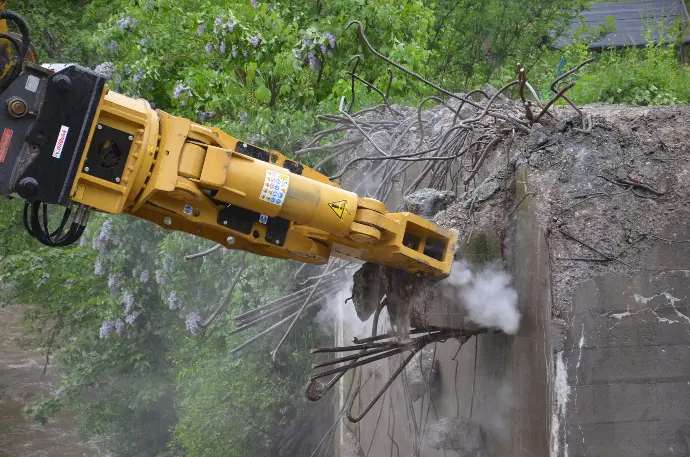

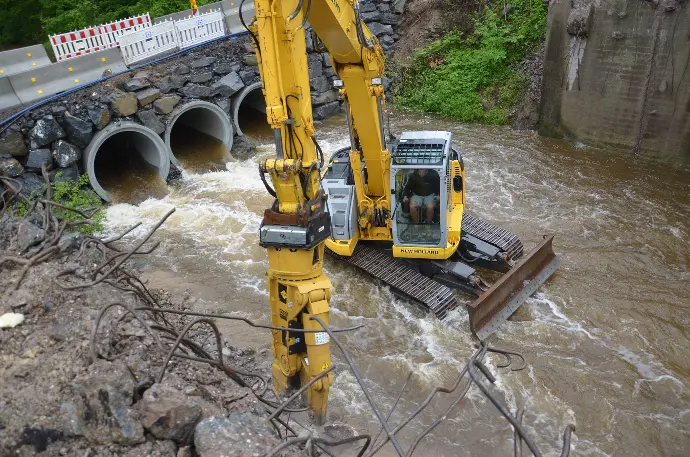

The O.S.A MC Series from OSA is by far the most technologically advanced universal attachment on the market today. Designed to perform at its best in extreme primary and secondary demolition applications, the MC is a must have for any serious contractor.

Key Features

Unmatched Crushing & Cutting Forces

Experience the highest levels of efficiency with our excavator attachment, designed for maximum performance in primary and secondary demolition. The MC Series offers unmatched force, capable of handling the toughest demolition tasks with ease. Equipped with interchangeable tools, including a steel shear kit, concrete cutter/crusher, pulverizer kit, and combi kit, this versatile system is tailored to suit any demolition application, ensuring you have the right tool for every job.

Hardox® & Weldox® Construction

Each unit is constructed from HARDOX® & WELDOX® steel, ensuring durability and exceptional performance in every demolition task. These high-strength materials provide the reliability and robustness needed for demanding applications. Additionally, each unit is backed by a 12-month manufacturer’s warranty, giving you peace of mind and confidence in the longevity of your investment.

360 Hydraulic Rotation

The 360° hydraulic rotation allows for accurate positioning, making this attachment ideal for controlled demolition tasks. This feature enables you to maneuver the jaws into the perfect position with ease, enhancing precision and reducing operational time. The anti-shock valve integrated into the system ensures stable and safe operation, even under the most demanding conditions. With this level of control, the MC Series stands out as a top choice for any demolition project.

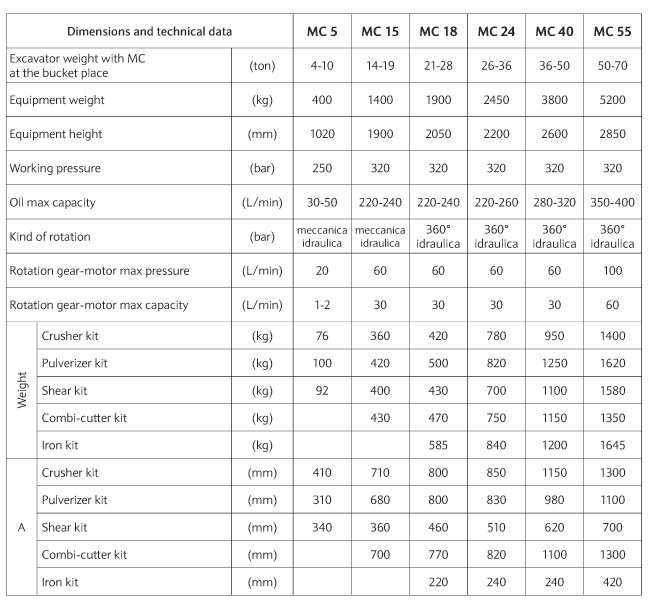

Specifications

Specification Unit MC5 MC7 MC10 MC15 MC18 MC24 MC30 MC40 MC55 MC80 MC110
Excavator Weight TON 4-8 7-11 12-15 14-19 21-28 26-36 30-38 36-50 50-70 80-100 85-130
Equipment Weight (Without Kit) KG 283 450 650 990 1210 1640 2380 2510 3791 5220 7300
Oil Pressure BAR 250 310 310 340 340 340 340 340 340 340 340
Oil Capacity L/MIN 30/50 100/150 140/160 200/240 250/300 260/320 280/360 300/350 340/380 400/500 500/600
Rotation Oil Pressure BAR 50 60 120/130 120/130 120/130 120/130 120/130 120/130 120/130 130 130
Rotation Oil Capacity L/MIN 15 20 20/30 20/30 20/30 20/30 50/60 50/60 50/60 50/60 70/80

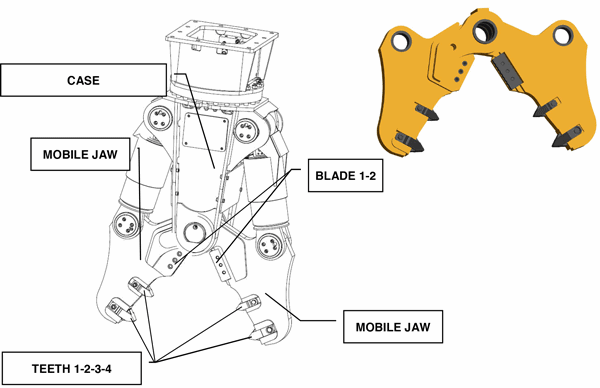

CRUSHER KIT
Opening (A) MM 410 525 670 710 800 850 920 1150 1300 1700 1900
Length (B) MM 1020 1446 1680 1900 2050 2200 2420 2600 2850 3200 3500
Width (P) MM 250 350 475 520 540 540 550 600 810 1110 1240
Equipment Weight KG 115 200 270 457 522 621 741 873 1412 2580 3500

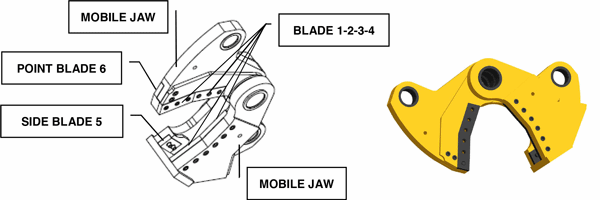

SHEAR KIT
Opening (A) MM 340 270 370 360 460 540 560 620 700 750 800
Length (B) MM 1050 1466 1545 1740 1910 2100 2300 2430 2525 2610 2815
Width (P) MM 280 370 340 360 400 400 410 430 485 520 555
Equipment Weight KG 92 180 240 400 430 700 780 1100 1580 2000 2500

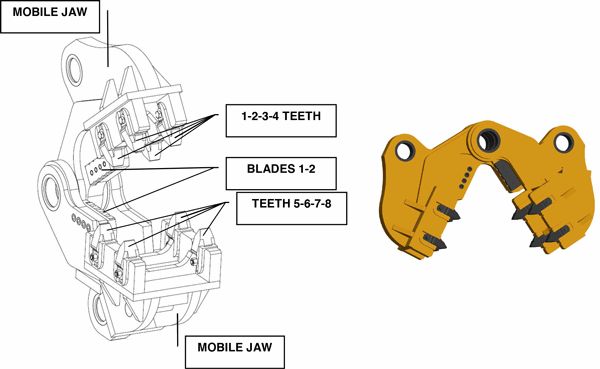

PULVERISER KIT
Opening (A) MM 310 500 570 650 800 830 920 980 1100 1600 1800
Length (B) MM 1020 1486 1715 1920 2080 2210 2450 2600 2870 3355 3685
Width (P) MM 250 390 510 540 570 600 550 600 870 265 425
Equipment Weight KG 100 250 310 420 500 820 850 1250 1620 800 3800

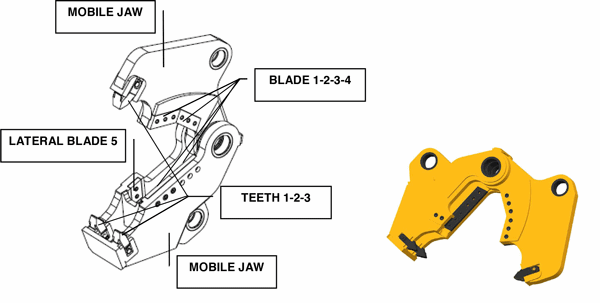

COMBI KIT
Opening (A) MM – – 660 720 830 865 870 1100 1300 1600 1750
Length (B) MM – – 1695 1955 2115 2230 2485 2500 2750 3015 3270
Width (P) MM – – 490 575 605 570 615 500 750 925 1010
Equipment Weight KG – – 300 430 470 750 780 1150 1350 2550 3750
UNIVERSAL KIT
Opening (A) MM – – 600 610 630 770 800 820 1000 1400 1565
Length (B) MM – – 1655 1835 1980 2320 2390 2650 2795 3205 3506
Width (P) MM – – 450 455 470 470 500 650 795 1115 1246
Equipment Weight KG – – 320 430 580 850 900 1150 1650 2600 3600
