Key Features

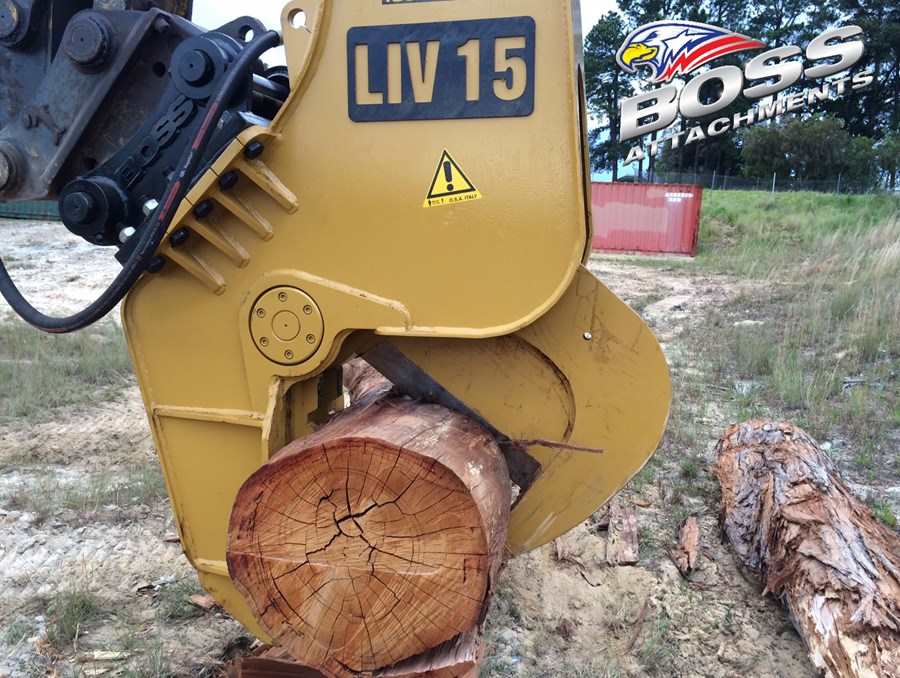

Protected Hydraulic Cylinder
The OSA tree shears hydraulic cylinders are shielded from external elements, guaranteeing outstanding cutting forces and prolonging the lifespan of the attachment.
Efficient Claw Design
The claw is meticulously designed for optimal log cutting and stump extraction, enabling you to handle large logs with precision.
Robust Hardox Construction
Manufactured using the toughest materials in the industry, Hardox® and Strenx®, our tree shears are engineered to cut through wood, logs, and stumps effortlessly. The powerful jaw design ensures high performance, even in the most challenging deforestation tasks.
Specifications
| Specification | Unit | LIV 10 | LIV 15 | LIV 20 |
|---|---|---|---|---|
| OPENING (A) | MM | 600 | 790 | 1000 |
| LENGTH (B) | MM | 1870 | 2830 | 3500 |
| WIDTH (C) | MM | 350 | 530 | 650 |
| EXCAVATOR WEIGHT | KG | 9-14 | 14/22 | 22/30 |
| EQUIPMENT WEIGHT | KG | 900 | 1510 | 2100 |
| OIL PRESSURE | BAR | 300 | 300 | 300 |
| OIL CAPACITY | L/min | 180/200 | 200/240 | 240/300 |
