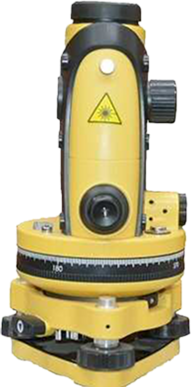

Features and Functions

• Able to be connected with a tripod by a 5/8” tread
• Projects two laser beams, up and down.
• Simple and easy to use
• Sealed and dustproof
• Used in construction , deformation observation

Package Details

• 2 x AA Batteries
• Hard carry case
• Manual
• Target

• Accuracy; 1/45000
• Effective aperture; 30mm
• Magnification; 25X
• Field of view; 1°30’
• Minimum focus distance; 0.5m
• Wavelength; 635nm
• Laser class; Class IIIA
• Minimum viewing distance; 0.5m
• Plummet accuracy; 0.5mm/1.5mm

• Day; 150m
• Night; 500m
• 40m range; maximum 4mm
• 100m range; maximum 5mm
• Deviation optical and laser axis; ≤ 2”
• Mean square plumb error; ≤ 5”
• Operating temperature; -10°C ~+ 40°C
• Net weight; 2.8kg
• Power supply; 2 “AA” batteries
